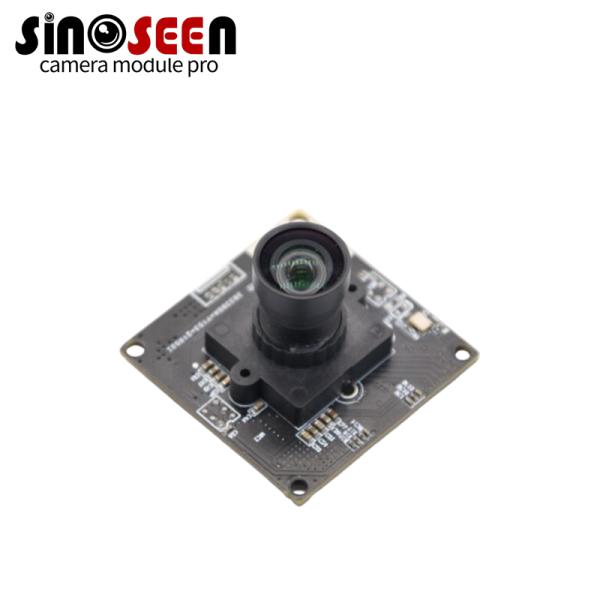

1080P USB2.0 Camera Module 60fps for Machine Vision

Name: 1080P USB20 Camera Module 60fps for Machine Vision
Brand: Sinoseen
Price: 10 USD

Wholesale 1080P USB2.0 Camera Module 60fps for Machine Vision from china suppliers

Brand Name : Sinoseen

Model Number : XLS-GM966-V1.0

Certification : RoHS

Place of Origin : China

MOQ : 5

Price : 10-100usd or negotiable

Payment Terms : T/T

Supply Ability : 500000 pieces/month

Delivery Time : 2-3week

Packaging Details : Tray+Anti-static bag in carton box

Description : 850nm IR-CUT 1080P Camera module

Series : USB camera modules

Imaging Distance : 1CM~infinitely

Operating Voltage : DC5V

Special Features : HDR, high speed, low light

Standard : USB Video Class（UVC）

Pixel : 2mp

Video Format : H.264

Focus : Fixed Focus Lens (customize)

Sensor Type : CMOS

Avdd : 2.8V

Display Interface : EDP/LVDS/MIPI

Agreement : UVC

Function : Wide Angle

Coded Format : H.265/H.264

Contact Now

Product Description

The XLS-GM966 sensor captures 1080P video with rolling shutter and outputs MJPG/YUY2.

It supports high frame rates, including 1080P at 60fps, ensuring smooth motion capture.

The USB2.0 interface allows seamless integration into industrial and machine vision systems.

It features low-light sensitivity and noise reduction for precise imaging.

The sensor supports M12 lenses with a fixed focus from 60cm to infinity.

Highlights

1080P video at high frame rates
Rolling shutter with MJPG/YUY2 support
USB2.0 interface for easy integration
Optimized for industrial and machine vision

Item	Specification
Model	Signal XLS-GM966-V1.0
Image Sensor Size	1/2” inch
Effective Pixels	1920 × 1080
Pixel Size	3.75 µm × 3.75 µm
Image Sensor Data Output	Raw Bayer 10 bits
Video Output Format	MJPG / YUY2
Maximum Resolution & Frame Rates	- 1920 × 1080 → MJPG: 60 FPS / YUY2: 5 FPS - 1280 × 960 → MJPG: 60 FPS / YUY2: 5 FPS - 1024 × 768 → MJPG: 60 FPS / YUY2: 10 FPS - 1280 × 720 → MJPG: 60 FPS / YUY2: 10 FPS - 800 × 600 → MJPG: 60 FPS / YUY2: 20 FPS - 640 × 480 → MJPG: 60 FPS / YUY2: 30 FPS - 320 × 240 → MJPG: 60 FPS / YUY2: 60 FPS
SNR (Max)	TBD
Dynamic Range	TBD
Minimum Illumination	TBD
Digital Interface	1.25 mm / 5-pin USB2.0 cable, 1.5 m length
Transfer Rates	480 MB/s
Power Requirements	5V ±5%
Power Consumption	NO LED / IR-LED / PCB printing ink black
Storage Temperature	-40°C ~ 70°C
Operating Temperature	-30°C ~ 60°C
Operating System Support	Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (UVC supported)
Effective Focal Length (EFL)	3.24 mm ±5%
F/NO (Aperture)	2.2 ±5%
Field of View (FOV)	D: 103° ±3°
Optical Distortion	< -1%
Lens Construction	4G2P + IR
Lens View (Default Lens)	M12 × P0.5
Focus Type	Fixed focus
Shooting Distance	60 cm ~ ∞

XLS-GM966-V1.0 1080P USB2.0 Camera Module 60fps for Machine Vision

Product Tags:

1080P USB camera module for machine vision

USB2.0 camera module 60fps

machine vision camera module with warranty

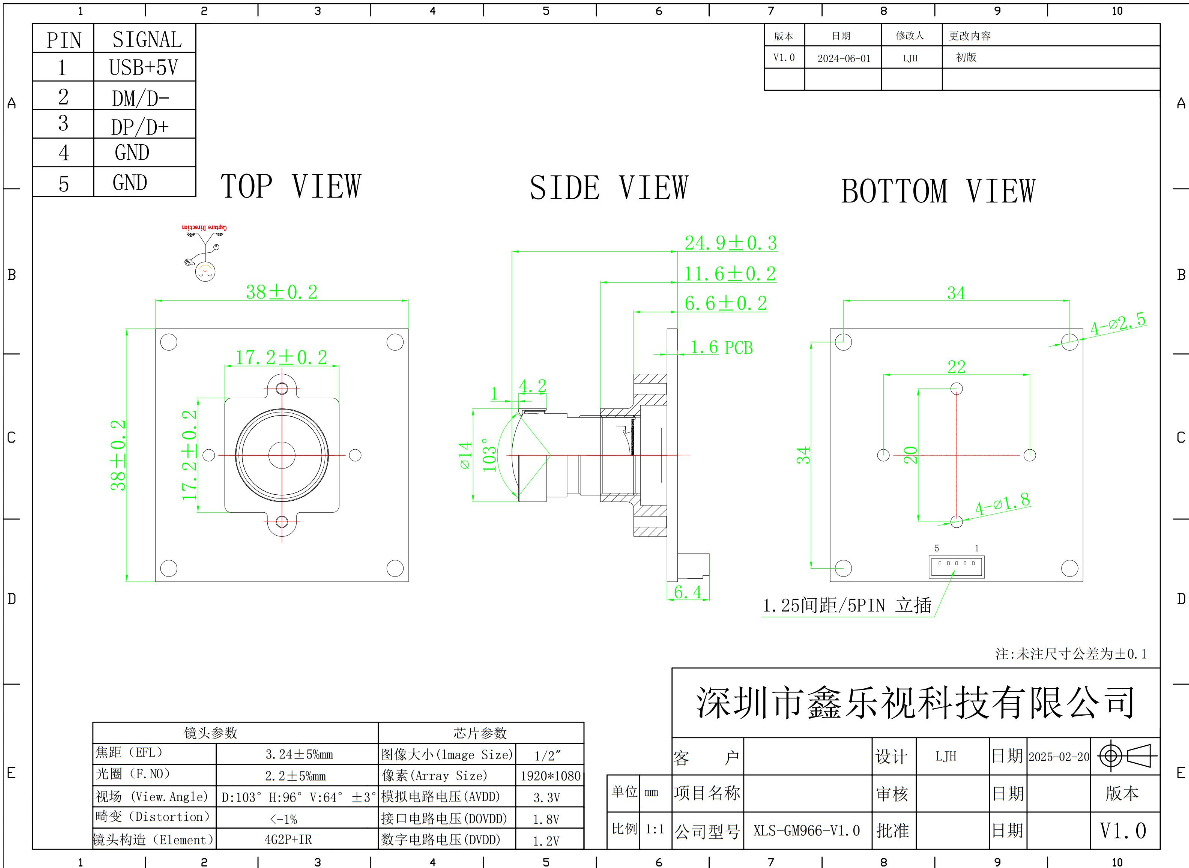

1080P USB2.0 Camera Module 60fps for Machine Vision Images
